Space for Net Card and space for 4 x 2.5” SATA drives (max. 15mm thick).
Dimensions : 150mm x 132mm x 127mm (Height)
A thin 92x92x15mm cooling fan can be installed internally as an option.
The hole for the second Ethernet port of H4+ and H4 Ultra is user-configurable: use a cutter to separate it from the rear panel.
This case is not compatible with the H2/H3 series.
- Cooling fan and net card are not included in this product.
- We recommend that you use an electric screwdriver when assembling the cooling fan with this case.
- We recommend that you use SATA Data and Power Cable (200mm) for this product.
A thin 92x92x15mm cooling fan can be installed internally as an option.

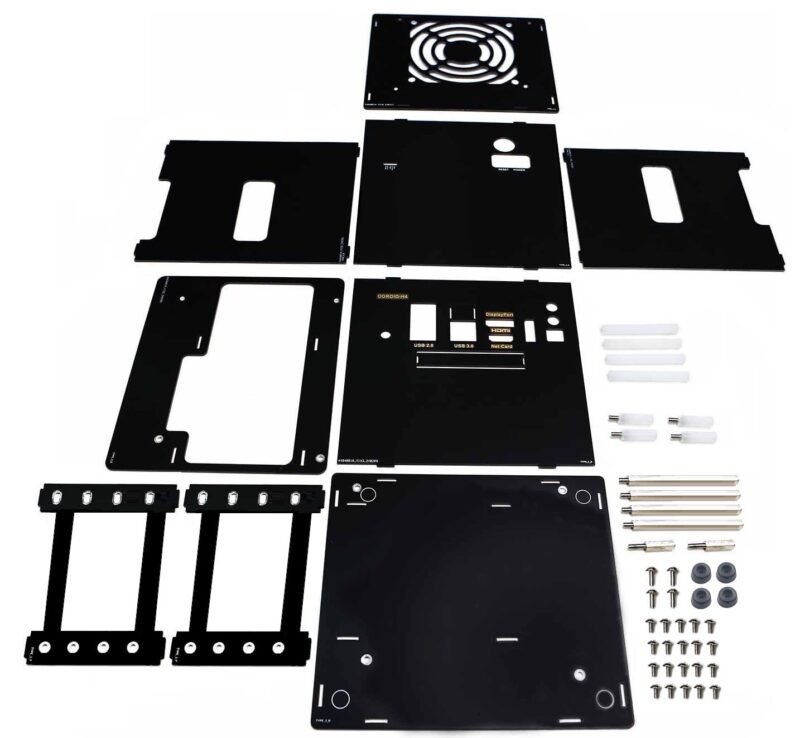

- Top panel
- Rear panel
- Front panel
- Bottom panel
- Inner bracket
- Left/Right Panel
- 2 x 2.5″ SATA HDD/SSD bracket
- 4 x 20mm (M/F) PCB Supports
- 2 x 16-9mm (M/F) PCB Supports (steel)
- 4 x 50mm (F/F) PCB Supports
- 4 x 50mm (M/F) PCB Supports
- 24 x 6mm Truss Head Bolts
- 4 x Rubber Feet (Round / Clear)
GTIN : 8809543643703
