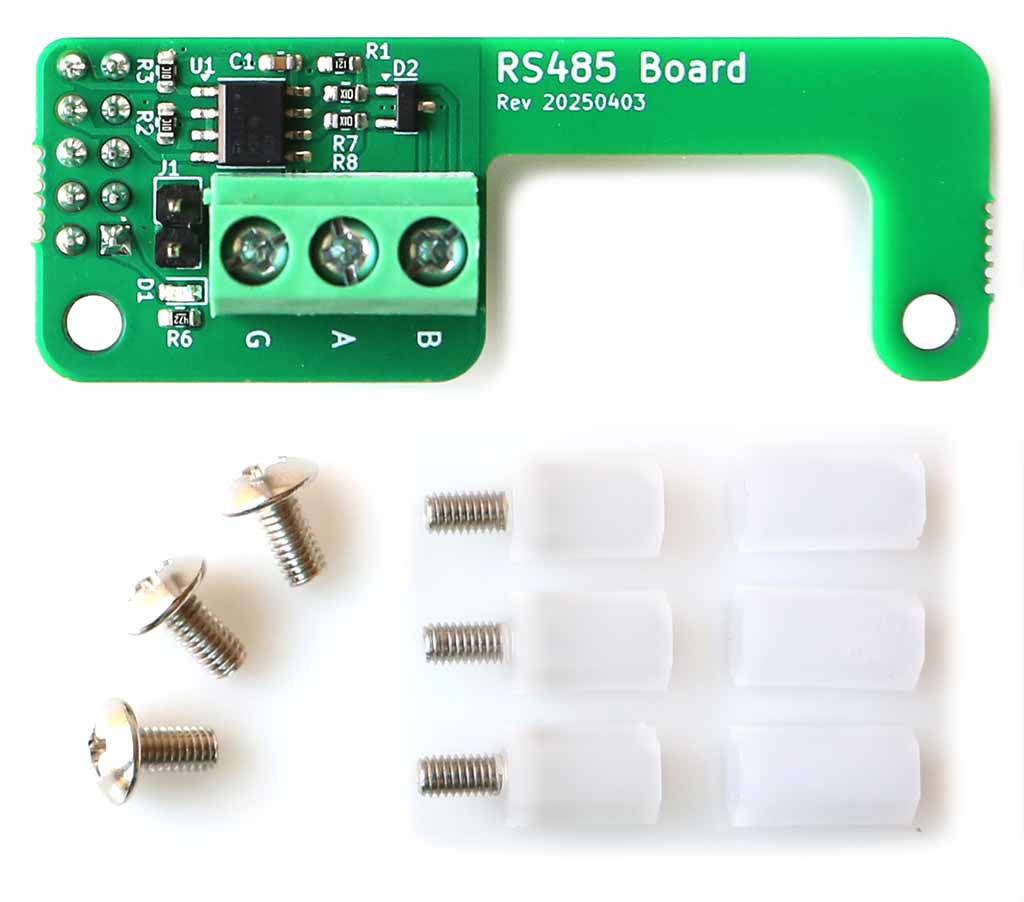

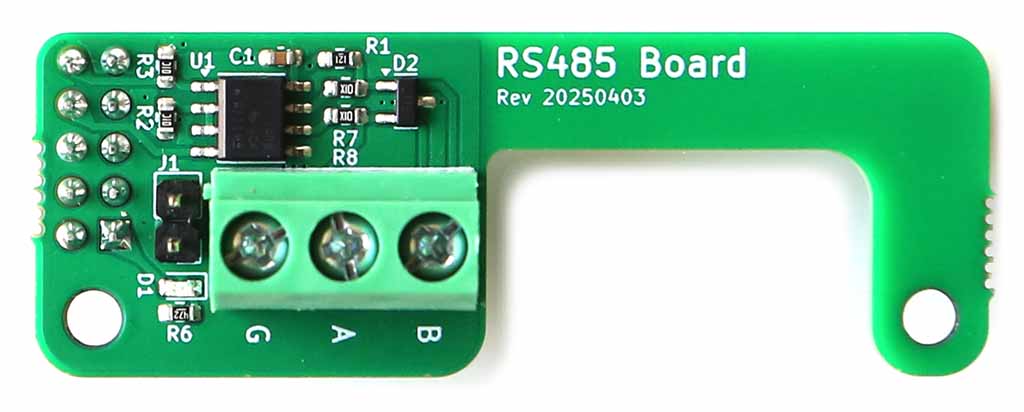

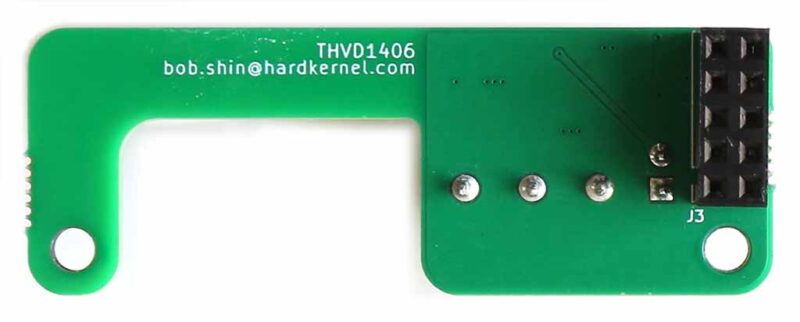

RS-485 Add on Board for C5
₩11,200
This board is designed to provide RS-485 control to ODROID single board computers, it is easily attachable to GPIO headers and accessible through UART bus.
-
Texas Instruments THVD1406
-
Half-duplex RS-485
-
Auto-direction control using the data input pin (No control pin required)
-
Maximum Data rates: 500 kbps
-
Built-in termination resistor (Use by shorting the j1 connector)
| Form Factor | Board dimension : 56 (L) x 20 (W) x 21 (H) mm |
| I/O | 1x RS-485 bus |
Wiki:https://wiki.odroid.com/accessory/add-on_boards/485board
GTIN:8809543644113
